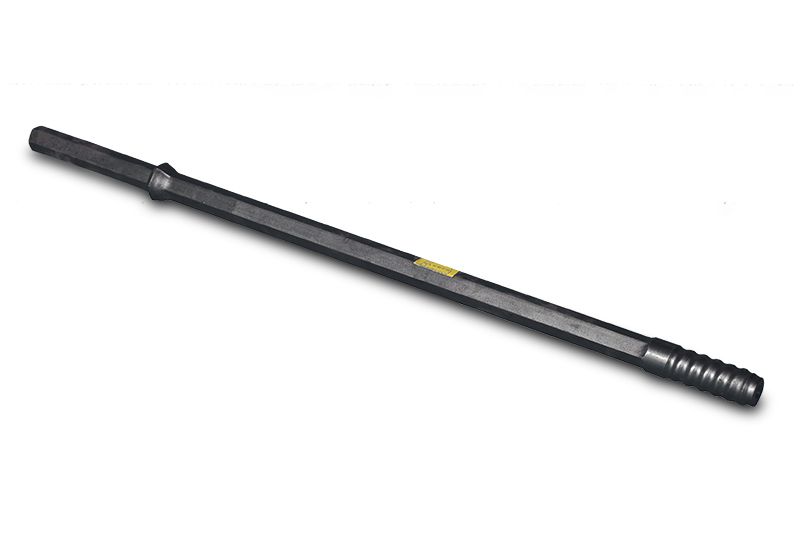

Shank Rods
Top hammer drilling tools
Shank rods are made with a small diameter. So it can be used in conjunction with both small equipment and large hydraulic drilling jumbo. In addition, the shank rods can be used with threaded drill bits.

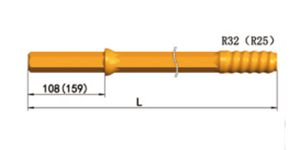

| 25mm(1”) Shank Rods | L | H | Thread | ||
| mm | Foot/inch | mm | inch | ||
 | 300 400 700 900 1900 2200 3500 3600 3900 4500 4700 5500 | 11 7/8’’ 1’ 3 3/4’’ 2’ 3 5/8’’ 2’ 11 3/8’’ 6’ 2 7/8’’ 7’ 2 5/8’’ 11’ 5 3/4’’ 11’ 9 3/4’’ 12’ 9 1/2’’ 14’ 9 1/8’’ 15’ 5 1/8’’ 18’ 1/2’’ | 25 25 25 25 25 25 25 25 25 25 25 25 | 1 1 1 1 1 1 1 1 1 1 1 1 | R25 R25 R25 R25 R32 R32 R32 R32 R32 R32 R32 R32 |

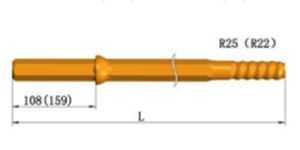

| 22mm(7/8") Shank Rod | L | H | Thread | Product Code | Weight Kg | ||
| mm | Foot /Inch | mm | Inch | ||||
 | 420 | 1’4 1/2" | 22 | 7/8 | R25 | 266-2204-2852 | 1.3 |
| 500 | 1’7 5/8" | 22 | 7/8 | R25 | 266-2205-2852 | 1.5 | |
| 800 | 2’7 1/2" | 22 | 7/8 | R25 | 266-2208-2852 | 2.5 | |
| 1000 | 3’3 3/8" | 22 | 7/8 | R25 | 266-2210-2852 | 3.1 | |
| 1200 | 3’11 1/4" | 22 | 7/8 | R25 | 266-2212-2852 | 3.7 | |
| 2000 | 6’6 3/4" | 22 | 7/8 | R22 | 266-2220-2851 | 6.2 | |
SANDCO is a trusted manufacturer of rock drilling tools with focus on R&D, manufacture and supply of a variety of high quality drilling consumables. For the past years, we have manufactured and supplied a complete range of top hammer drill tools and DTH drill tools for different applications including mining, quarrying, construction and tunneling. As a reliable drilling tools manufacturer, we are constantly searching for ways to improve the quality of rock drilling tools and deliver unparalleled services to win customers' satisfaction.
